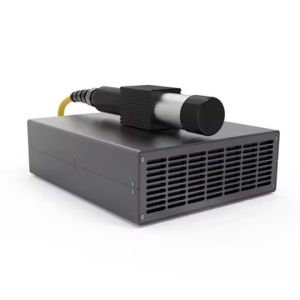

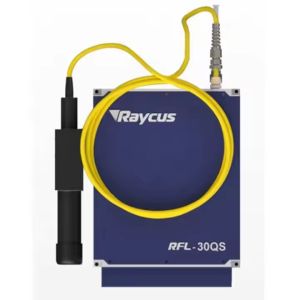

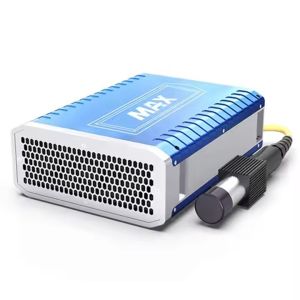

Raycus JPT MAX Laser Source 20W 30W 50W Q-Switched Pulse Mopa Fiber Laser Source

Product Description

The 20-50W Q-Switched Pulse Fiber Laser Series developed by Raycus is the industrial marking and micromachining laser. This
series pulse laser has high peak power, high single-pulse energy and optional spot diameter and can be widely applied in the
fields, such as marking, precision processing, graphic engraving of non-metal, gold, silver, copper and aluminum with altitude

Technical characteristics
* Highly stable laser output
* High single-pulse energy
* High marking efficiency
* Short pulse setup time
* High reliability
* Maintenance-free operation
Optical Properties
* Average output power: (W): 20
* Central wavelength: (nm): 1064
* Repetition frequency: (kHz): 10-50
* Output power stability: <3%
Output characteristics
* Output Beam Diameter(mm): 7±1
* M²:<1.5
* Polarization state: random
* Pulse Width Range(ns):110-140
* Max.Single Pulse Energy(mJ):0.67Delivery Cable length (m): 3(Customizable)
Electronic control characteristics
* Input power (V DC ): 24
* Power adjustment range (%): 10-100
Other characteristics
* Dimensions (mm ): 260*120*340(handle included)Cooling method: Air-cooled
* Working temperature (℃ ): 0-40
Application Of Q-Switched Pulse Fiber Laser
* Rust Removal
* Oil Cleaning
* Mold Surface Treatment
* Paint Stripping
* Welding Surface Pre-treatment
* Portrait Stone Surface Treatment
FAQ

1. How can I get the best machine for me?
You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet with your requirements or not. Then we can recommend you with the suitable model by our accumulated experiences.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us?
Laser Marking Machine / Laser Cutting Machine / Laser Welding Machine / Laser Cleaning Machine / CO2 Engraving Machine / CNC Router / UV Printer

4. why should you buy from us not from other suppliers?
Hongmeng Laser is company for 12 years. It is a professional manufacturer engaged in the research, development, production and service of cnc router & laser machine .

5. How do you ensure that it's the right machine I need?
You can send your materials to us by courier, we will mark you for free, and send you pictures and videos.
